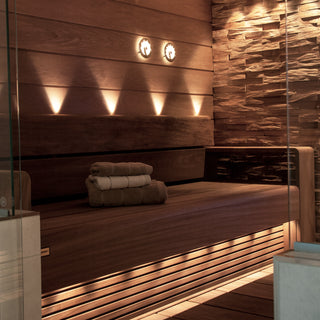

SEE YOUR SAUNA IN a NEW LIGHT with CARIITTI’S PREMIUM GLASS FIBER LIGHTS

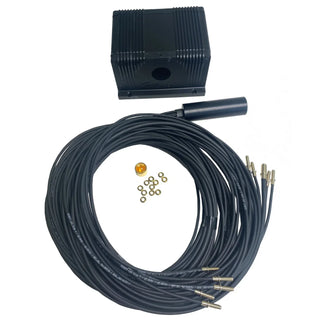

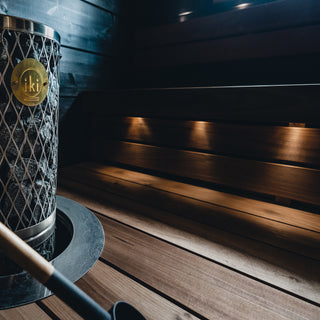

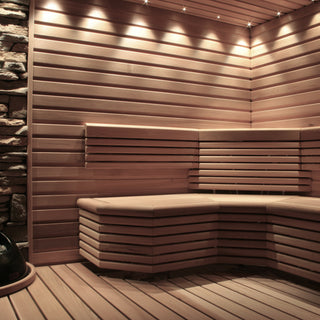

Cariitti's Premium Glass Fiber Lighting Sets provide a variety of options for lighting your sauna. Available in three sizes (8 spots, 11 spots, or 21 spots), they can be installed on the sauna ceiling or the benches of your sauna.
The glass fiber spots in Cariitti’s lighting sets create a halo of warm 2700K light that brings out the natural beauty of your sauna materials.
All of the lighting sets include a heater lens that can be used in one of the fiber spots to illuminate your heater, so you can not only feel but also see the steam rising from your heater.

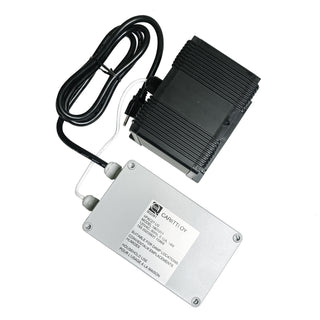

Cariitti’s Premium Glass Fiber Lighting set with a dimmable VPAC27 Led projector ensures a low energy consumption and a long lifespan. The projector is completely silent and produces just a small amount of heat which makes it ideal for use in a sauna. A high RA index >90 together with a warm 2700K LED ensures an atmospheric sauna lighting.
The difference between Cariitti's Standard and Premium set is the power output of the projector and the fiber thickness. The thicker the fiber the more light it emits.
ADVANTAGES OF GLASS FIBER LIGHTING IN SAUNA USE
- Glass fiber withstands high temperatures up to +356F (180C) which is essential in sauna use.
- There is no electricity in the fibers, they only emit light.
- There are no electronics in the fibers; Fibers have no wearing parts which means they last forever or at least until your next renovation, and they can even be reused.
- Glass fiber lights are practically maintenance free, the only maintenance point is the projector, which has a service life of 50 000 hrs.
- When comparing with LED strips, it is important to pay attention not only to the purchase price, but to the maintenance costs as well.
5 YEAR WARRANTY
Cariitti’s lighting sets come with a 5 year warranty by the manufacturer, excluding incorrect installation or use.
NOTE: GLASS FIBER CANNOT BE CUT AT THE INSTALLATION SITE, NO SHARP 90° BENDING OR NAILING.
TECHNICAL SPECIFICATIONS
PREMIUM 8 (7+1) SPOT SET |
||
|
Suitable for lighting a sauna of about 30-55 sq.ft. |
||
|
PROJECTOR SPECIFICATIONS |
LIGHTS |

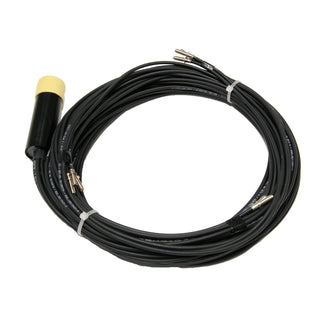

FIBERS |
|
Type: |
7 spots |
Fiber lengths: |
|
120VAC, 60Hz, 0.12A, 14W, |
1 spot for the heater lens (to be installed above the heater) ⌀3mm |
1 pc x 11.5 ft (⌀3mm) |
|
Equipped with a power cord |
Heater lens |
Includes 7pcs locking rings and 7pcs size M5 ferrules |
|
Certified: |
Dimmable 2700K / Ra >90 |
Harness S832 |
| Projector to be installed outside of the sauna or underneath the sauna bench max 2.3 ft from the floor | Output: 1500lm, 16W | |
PREMIUM 11 (10+1) SPOT SET |
||
|
Suitable for lighting a sauna of about 45-65 sq.ft. |
||
|
PROJECTOR SPECIFICATIONS |
LIGHTS |
FIBERS |
|
Type: Model: 1801011 |
10 spots (for bench or ceiling) |
Fiber lengths: |
|
120VAC, 60Hz, 0.12A, 14W, |
1 spot for the heater lens (to be installed above the heater) ⌀4mm |
1pc x 11.5ft (⌀4mm) |
|
Equipped with a power cord |
Heater lens |
Includes 10pcs locking rings and 10pcs size M5 ferrules + 1pc size M8 ferrule |
|
Certified: |
Dimmable |
Harness N211 |
| Projector to be installed outside of the sauna or underneath the sauna bench max 2.3ft from the floor | Output: 1500lm, 16W | |
PREMIUM 21 (20+1) SPOT SET |
||
|
Suitable for lighting a sauna of about 55-110 sq.ft. |
||
|
PROJECTOR SPECIFICATIONS |
LIGHTS |
FIBERS |
|
Type:
|
20 spots (for bench or ceiling) |
Fiber lengths: |
|
120VAC, 60Hz, 0.12A, 14W, |
1 spot for the heater lens (to be installed above the heater) ⌀4mm |
1pc x 11.5ft (⌀4mm) |
|
Equipped with a power cord |
Heater lens |
Includes 20pcs locking rings and 20pcs size M5 ferrules + 1pc size M8 ferrule |
|
Certified: |
Dimmable 2700K / Ra >90 |
Harness N221 |
| Projector to be installed outside of the sauna or underneath the sauna bench max 2.3 ft from the floor | Output: 1500lm, 16W | |
INSTALLATION INSTRUCTIONS
Cariitti Glass Fiber Lighting set installation instructions >
Bench installation for Cariitti Glass Fiber Lighting Sets >
Projector VPAC27 installation instructions >
Projector installation video >
GENERAL INSTRUCTIONS
How to choose the right lighting to your sauna >
LIGHT SWITCH and DIMMER
Light switch is not included. We recommend using a regular light switch (push-to-dim) with your sauna light set, such as: Leviton switch 5655-2W or Zooz Momentary Push-Button in-Wall Switch ZAC99 from Amazon.
SEE YOUR SAUNA IN a NEW LIGHT with CARIITTI’S PREMIUM GLASS FIBER LIGHTS
Cariitti's Premium Glass Fiber Lighting Sets provide a variety of options for lighting your sauna. Available in three sizes (8 spots, 11 spots, or 21 spots), they can be installed on the sauna ceiling or the benches of your sauna.
The glass fiber spots in Cariitti’s lighting sets create a halo of warm 2700K light that brings out the natural beauty of your sauna materials.
All of the lighting sets include a heater lens that can be used in one of the fiber spots to illuminate your heater, so you can not only feel but also see the steam rising from your heater.
Cariitti’s Premium Glass Fiber Lighting set with a dimmable VPAC27 Led projector ensures a low energy consumption and a long lifespan. The projector is completely silent and produces just a small amount of heat which makes it ideal for use in a sauna. A high RA index >90 together with a warm 2700K LED ensures an atmospheric sauna lighting.
The difference between Cariitti's Standard and Premium set is the power output of the projector and the fiber thickness. The thicker the fiber the more light it emits.
ADVANTAGES OF GLASS FIBER LIGHTING IN SAUNA USE
- Glass fiber withstands high temperatures up to +356F (180C) which is essential in sauna use.
- There is no electricity in the fibers, they only emit light.
- There are no electronics in the fibers; Fibers have no wearing parts which means they last forever or at least until your next renovation, and they can even be reused.
- Glass fiber lights are practically maintenance free, the only maintenance point is the projector, which has a service life of 50 000 hrs.
- When comparing with LED strips, it is important to pay attention not only to the purchase price, but to the maintenance costs as well.
5 YEAR WARRANTY
Cariitti’s lighting sets come with a 5 year warranty by the manufacturer, excluding incorrect installation or use.
NOTE: GLASS FIBER CANNOT BE CUT AT THE INSTALLATION SITE, NO SHARP 90° BENDING OR NAILING.
TECHNICAL SPECIFICATIONS
PREMIUM 8 (7+1) SPOT SET |
||
|
Suitable for lighting a sauna of about 30-55 sq.ft. |
||
|
PROJECTOR SPECIFICATIONS |
LIGHTS |
FIBERS |
|
Type: |
7 spots |
Fiber lengths: |
|
120VAC, 60Hz, 0.12A, 14W, |
1 spot for the heater lens (to be installed above the heater) ⌀3mm |
1 pc x 11.5 ft (⌀3mm) |
|
Equipped with a power cord |
Heater lens |
Includes 7pcs locking rings and 7pcs size M5 ferrules |
|
Certified: |
Dimmable 2700K / Ra >90 |
Harness S832 |
| Projector to be installed outside of the sauna or underneath the sauna bench max 2.3 ft from the floor | Output: 1500lm, 16W | |
PREMIUM 11 (10+1) SPOT SET |
||
|
Suitable for lighting a sauna of about 45-65 sq.ft. |
||
|
PROJECTOR SPECIFICATIONS |
LIGHTS |
FIBERS |
|
Type: Model: 1801011 |
10 spots (for bench or ceiling) |
Fiber lengths: |
|
120VAC, 60Hz, 0.12A, 14W, |
1 spot for the heater lens (to be installed above the heater) ⌀4mm |
1pc x 11.5ft (⌀4mm) |
|
Equipped with a power cord |
Heater lens |
Includes 10pcs locking rings and 10pcs size M5 ferrules + 1pc size M8 ferrule |
|
Certified: |
Dimmable |
Harness N211 |
| Projector to be installed outside of the sauna or underneath the sauna bench max 2.3ft from the floor | Output: 1500lm, 16W | |
PREMIUM 21 (20+1) SPOT SET |
||
|
Suitable for lighting a sauna of about 55-110 sq.ft. |
||
|
PROJECTOR SPECIFICATIONS |
LIGHTS |
FIBERS |
|
Type:
|
20 spots (for bench or ceiling) |
Fiber lengths: |
|
120VAC, 60Hz, 0.12A, 14W, |
1 spot for the heater lens (to be installed above the heater) ⌀4mm |
1pc x 11.5ft (⌀4mm) |
|
Equipped with a power cord |
Heater lens |
Includes 20pcs locking rings and 20pcs size M5 ferrules + 1pc size M8 ferrule |
|
Certified: |
Dimmable 2700K / Ra >90 |
Harness N221 |
| Projector to be installed outside of the sauna or underneath the sauna bench max 2.3 ft from the floor | Output: 1500lm, 16W | |
INSTALLATION INSTRUCTIONS
Cariitti Glass Fiber Lighting set installation instructions >
Bench installation for Cariitti Glass Fiber Lighting Sets >
Projector VPAC27 installation instructions >
Projector installation video >
GENERAL INSTRUCTIONS
How to choose the right lighting to your sauna >
LIGHT SWITCH and DIMMER
Light switch is not included. We recommend using a regular light switch (push-to-dim) with your sauna light set, such as: Leviton switch 5655-2W or Zooz Momentary Push-Button in-Wall Switch ZAC99 from Amazon.
